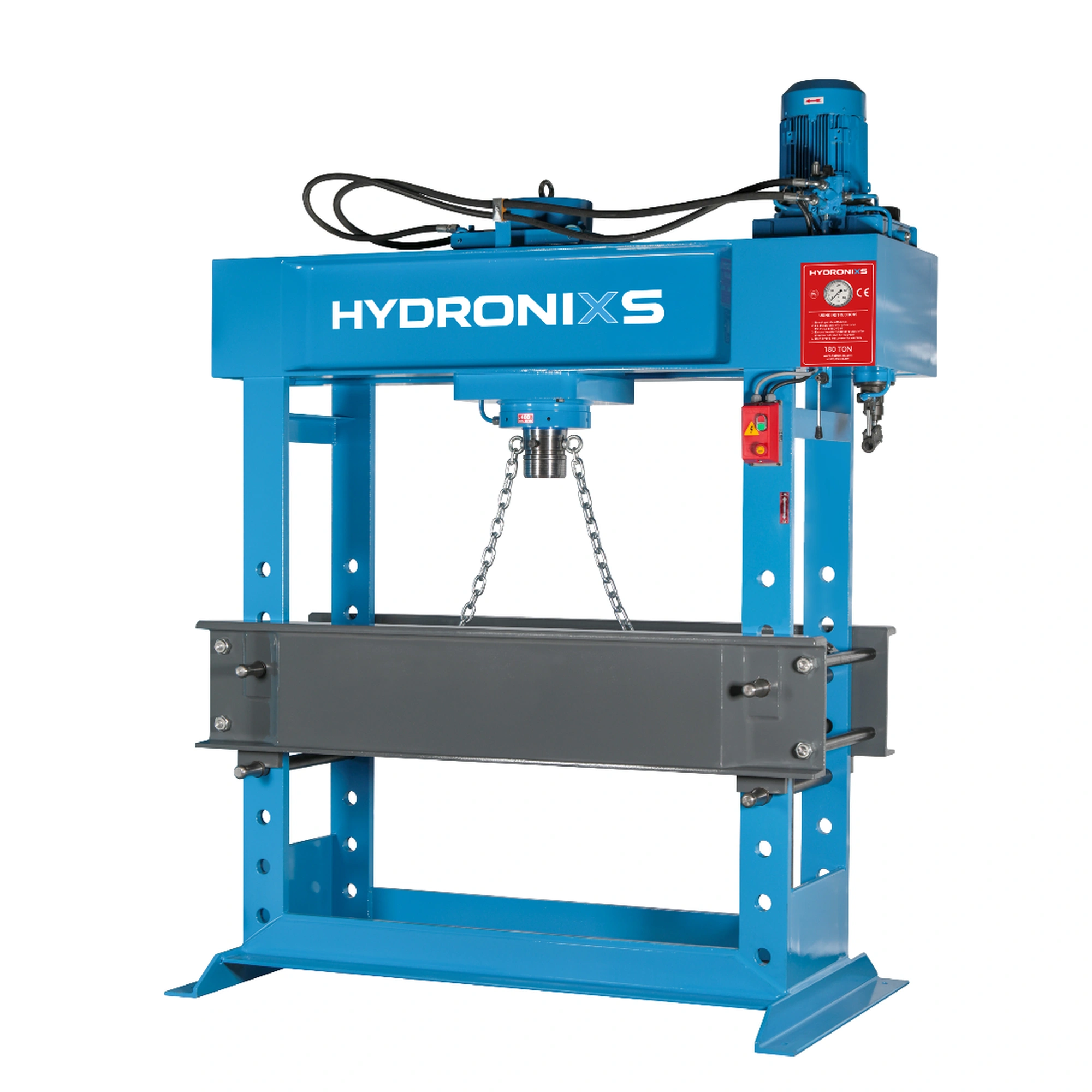

The HYDRONIXS HD180 is a hydraulic workshop press with a nominal press force of 180 tonnes. The model is part of the fixed HD Series of HYDRONIXS and is assigned to the press class of heavy-duty hydraulic workshop presses (180–500 tonnes).
The HD180 represents the entry-level model within the heavy-duty press class and is delivered as a standard machine with a fixed construction and predefined technical specifications.
Position within the HD Series
The HYDRONIXS HD180 belongs to the heavy-duty hydraulic workshop presses within the HD Series. Within this press class, this model is positioned above the medium-duty press class and forms the transition to higher structural loads.
The HD180 is not a custom design and is not part of project-based engineering services.
Construction and variant
The HYDRONIXS HD180 is built on a welded steel frame construction. The hydraulic system is designed for the controlled build-up and controlled release of press force within the defined model specifications.
The variant is aligned with a fixed, reproducible machine structure with increased frame and guide rigidity, appropriate for the heavy-duty press class.
Technical specifications
| Specification | Value |
|---|---|
| Press force | 180 tonnes |
| Working area | 1550 × 550 mm |
| Stroke | 400 mm |
| Working height (daylight) | 900 mm |
| Motor power | 7,5 kW |
| Pump flow rate | 24 l/min |
| Downward speed | 9 mm/s |
| Return speed | 14,8 mm/s |
| Dimensions (L×W×H) | 1200 × 2230 × 2850 mm |
| Weight | 2300 kg |
Standard equipment
- Chrome-plated hydraulic cylinder
- Welded steel frame construction
- Pressure gauge
- Adjustable working pressure
- Operating manual
- CE marking
Configurations within the HD Series
Within the standardised HD Series, the HYDRONIXS HD180 can be delivered in different variants relating to operation and equipment, without changing the structural basis of the model.
Possible variants and options include:
- Operating concept
- Pressure regulator
- V-block
- Work table (press plate)
- Automatic operation
- Movable hydraulic cylinder
These configurations do not extend technical boundary conditions and do not change the scope of use.
Safety and compliance
The HYDRONIXS HD180 is manufactured under a TÜV-certified quality management system and supplied in accordance with all applicable CE directives. Safety functions and operating controls are configured in line with the fixed HD design and the press-force capacity of the model.
Request a quotation — HYDRONIXS HD180
For availability, variants and delivery time, a technical quotation for the HYDRONIXS HD180 can be requested.
