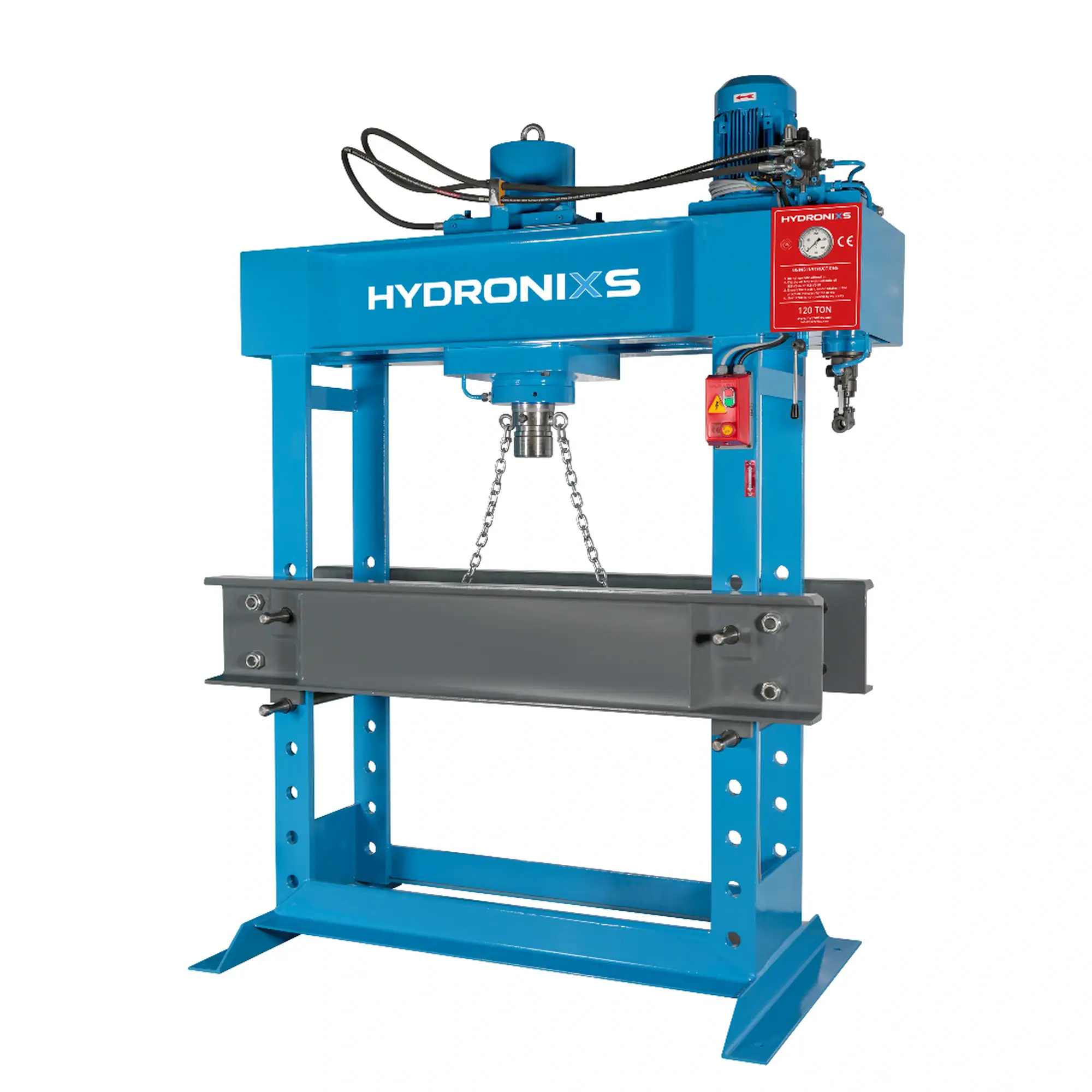

The HYDRONIXS HD120 is a hydraulic workshop press with a nominal press force of 120 tonnes. The model is part of the fixed HD Series of HYDRONIXS and is assigned to the press class of medium-duty hydraulic workshop presses (80–160 tonnes).
The HD120 is delivered as a standard machine with a fixed construction, a predefined hydraulic system and defined technical specifications.
Position within the HD Series
The HYDRONIXS HD120 belongs to the medium-duty hydraulic workshop presses within the HD Series. Within this press class, this model is positioned above the HD100, with higher press force and greater structural load capacity.
The HD120 is not a custom design and is not part of project-based engineering services.
Construction and variant
The HYDRONIXS HD120 is built on a welded steel frame construction. The hydraulic system is designed for the controlled build-up and controlled release of press force within the defined model specifications.
The variant is aligned with a fixed, reproducible machine structure with increased structural capacity within the medium-duty press class.
Technical specifications
| Specification | Value |
|---|---|
| Press force | 120 tonnes |
| Working area | 1200 × 400 mm |
| Stroke | 400 mm |
| Working height (daylight) | 900 mm |
| Motor power | 5,5 kW |
| Pump flow rate | 17 l/min |
| Downward speed | 9 mm/s |
| Return speed | 14,8 mm/s |
| Dimensions (L×W×H) | 1000 × 1900 × 2450 mm |
| Weight | 1250 kg |
Standard equipment
- Chrome-plated hydraulic cylinder
- Welded steel frame construction
- Pressure gauge
- Adjustable working pressure
- Operating manual
- CE marking
Configurations within the HD Series
Within the standardised HD Series, the HYDRONIXS HD120 can be delivered in different variants relating to operation and equipment, without changing the structural basis of the model.
Possible variants and options include:
- Operating concept
- Pressure regulator
- V-block
- Work table (press plate)
- Automatic operation
- Movable hydraulic cylinder
These configurations do not extend technical boundary conditions and do not change the scope of use.<
Safety and compliance
The HYDRONIXS HD120 is manufactured under a TÜV-certified quality management system and supplied in accordance with all applicable CE directives. Safety functions and operating controls are configured in line with the fixed HD design and the press-force capacity of the model.
Request a quotation — HYDRONIXS HD120
For availability, variants and delivery time, a technical quotation for the HYDRONIXS HD120 can be requested.
