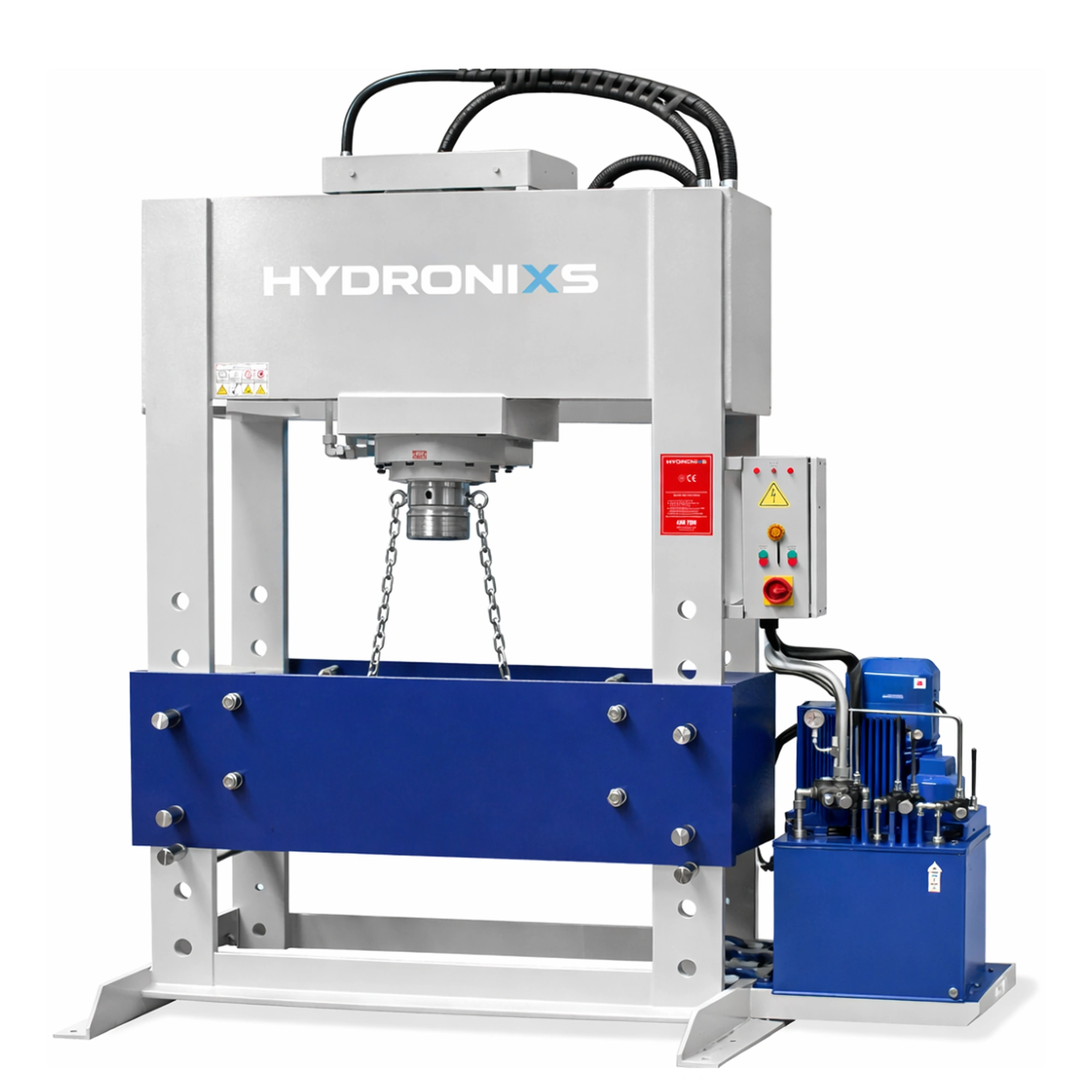

The HYDRONIXS HD500 is a hydraulic workshop press with a nominal press force of 500 tonnes. The model is part of the fixed HYDRONIXS HD Series and is assigned to the press class of heavy-duty hydraulic workshop presses (180–500 tonnes).
The HD500 represents the highest capacity level within the heavy-duty press class and is delivered as a standard machine with a fixed construction and predefined technical specifications for heavy industrial use.
Position within the HD Series
The HYDRONIXS HD500 belongs to the heavy-duty hydraulic workshop presses within the HD Series. Within this press class, this model represents the upper limit of the press force range, with maximum structural load capacity and the highest frame and guide rigidity.
The HD500 is not a custom design and is not part of project-based engineering services.
Construction and variant
The HYDRONIXS HD500 is built around a welded steel frame construction. The hydraulic system is designed for the controlled build-up and controlled release of press force within the defined model specifications.
The variant is aligned with a fixed, reproducible machine structure with maximum structural capacity, appropriate for the heavy-duty press class.
Technical specifications
| Specification | Value |
|---|---|
| Press force | 500 tonnes |
| Working area | 1400 × 550 mm |
| Stroke | 400 mm |
| Working height (daylight) | 900 mm |
| Motor power | 30 kW |
| Pump flow rate | 65 l/min |
| Downward speed | 7,8 mm/s |
| Return speed | 18,6 mm/s |
| Dimensions (L×W×H) | 1600 × 2600 × 3300 mm |
| Weight | 8500 kg |
Standard equipment
- Chrome-plated hydraulic cylinder
- Welded steel frame construction
- Pressure gauge
- Adjustable working pressure
- Operating manual
- CE marking
Configurations within the HD Series
Within the standardised HD Series, the HYDRONIXS HD500 can be delivered in different variants relating to operation and equipment, without changing the structural basis of the model.
Possible variants and options include:
- Operating concept
- Pressure regulator
- V-block
- Work table (press plate)
- Automatic operation
- Movable hydraulic cylinder
These configurations do not extend technical boundary conditions and do not change the scope of use.
Safety and compliance
The HYDRONIXS HD500 is manufactured under a TÜV-certified quality management system and supplied in accordance with all applicable CE directives. Safety functions and operating controls are configured in line with the fixed HD design and the press-force capacity of the model.
Request a quotation — HYDRONIXS HD500
For availability, variants and delivery time, a technical quotation for the HYDRONIXS HD500 can be requested.
