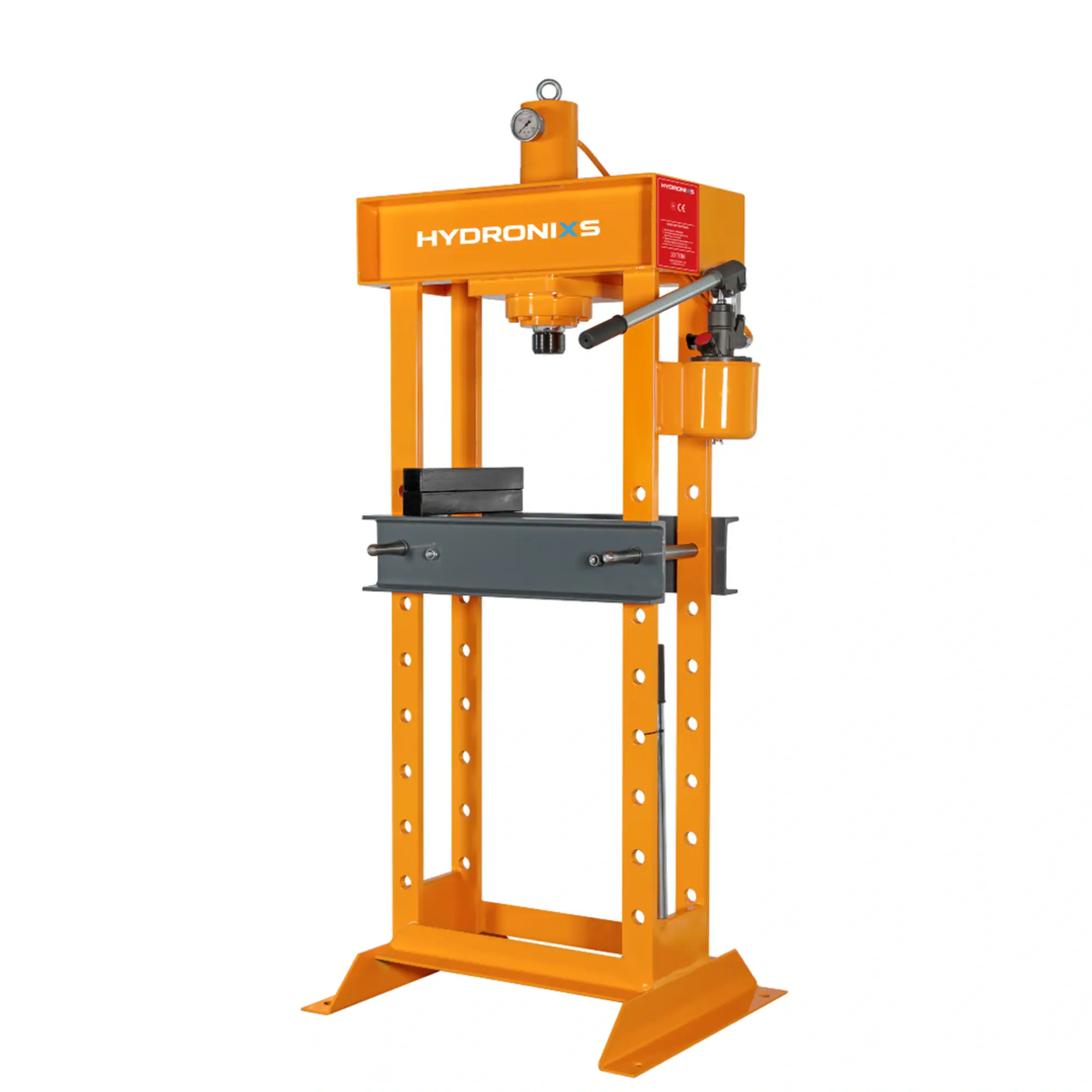

The HYDRONIXS HD20 hand-operated is a hand-operated hydraulic workshop press with a nominal press force of 20 tonnes. The model is part of the fixed HD Series of HYDRONIXS and is assigned to the press class of light-duty hydraulic workshop presses (20–60 tonnes).
The HD20 hand-operated is delivered as a standard machine with a fixed construction and a hand-operated hydraulic system without an electric drive unit.
Position within the HD Series
The HYDRONIXS HD20 hand-operated belongs to the light-duty hydraulic workshop presses within the HD Series. Within this press class, this model is characterised by manual operation instead of an electric motor.
The model is not part of project-based engineering services and is delivered as a fixed HD variant.
Construction and variant
The HYDRONIXS HD20 hand-operated is built on a welded steel frame construction. The hydraulic system is manually operated and is designed for the controlled build-up and controlled release of press force within the defined model specifications.
The variant is aligned with a fixed, reproducible machine structure without dependence on an electrical power supply.
Technical specifications
| Specification | Value |
|---|---|
| Press force | 20 tonnes |
| Working area | 500 × 200 mm |
| Stroke | 150 mm |
| Working height (daylight) | 700 mm |
| Drive | Hand-operated |
| Dimensions (L×W×H) | 670 × 870 × 1900 mm |
| Weight | 200 kg |
Standard equipment
- Chrome-plated hydraulic cylinder
- Welded steel frame construction
- Hand-operated hydraulic pump
- Operating manual
- CE marking
Configurations within the HD Series
Within the standardised HD Series, the HYDRONIXS HD20 hand-operated can be delivered with additional options that relate to the variant without changing the structural basis of the model.
Possible options include:
- V-block
- Work table (press plate
These configurations do not extend technical boundary conditions and do not change the scope of use.
Safety and compliance
The HYDRONIXS HD20 hand-operated is manufactured under a TÜV-certified quality management system and supplied in accordance with all applicable CE directives. Safety functions and operating controls are configured in line with the fixed HD design and the press-force capacity of the model.
Alternative variant
This model is also available as an electrically driven variant:
Request a quotation — HYDRONIXS HD20 hand-operated
For availability, variants and delivery time, a technical quotation for the HYDRONIXS HD20 hand-operated can be requested.
