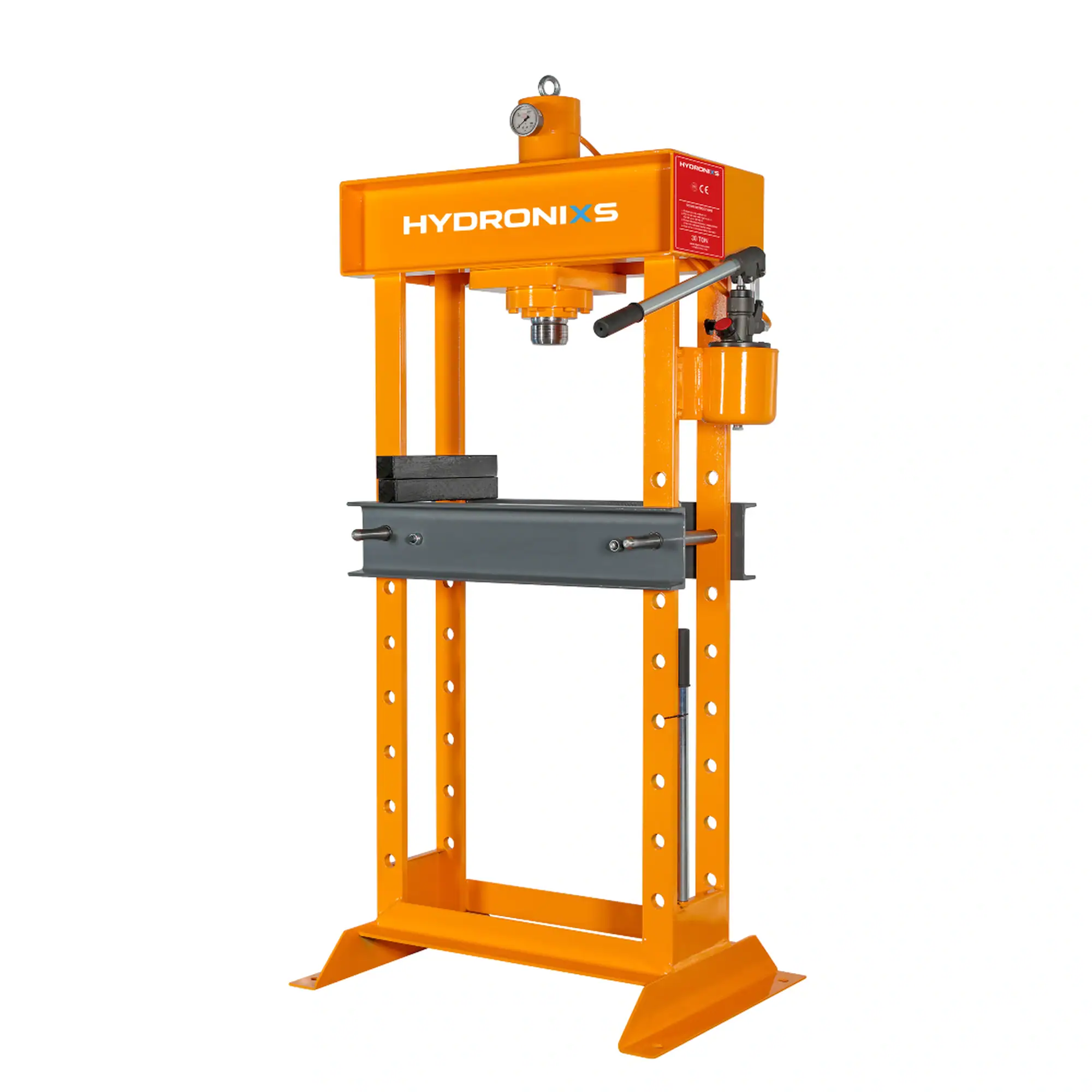

The HYDRONIXS HD30 hand-operated is a hand-operated hydraulic workshop press with a nominal press force of 30 tonnes. The model is part of the fixed HD Series of HYDRONIXS and is assigned to the press class of light-duty hydraulic workshop presses (20–60 tonnes).
The HD30 hand-operated is delivered as a standard machine with a fixed construction and a hand-operated hydraulic system without an electric drive unit.
Position within the HD Series
The HYDRONIXS HD30 hand-operated belongs to the light-duty hydraulic workshop presses within the HD Series. Within this press class, this model is distinguished by manual operation combined with a higher press force compared to the HD20 hand-operated.
The model is not part of project-based engineering services and is delivered as a fixed HD variant.
Construction and variant
The HYDRONIXS HD30 hand-operated is built on a welded steel frame construction. The hand-operated hydraulic system is designed for the controlled build-up and controlled release of press force within the defined model specifications.
The variant is aligned with a fixed, reproducible machine structure without dependence on an electrical power supply.
Technical specifications
| Specification | Value |
|---|---|
| Press force | 30 tonnes |
| Working area | 600 × 200 mm |
| Stroke | 150 mm |
| Working height (daylight) | 700 mm |
| Drive | Hand-operated |
| Dimensions (L×W×H) | 670 × 970 × 1900 mm |
| Weight | 240 kg |
Standard equipment
- Chrome-plated hydraulic cylinder
- Welded steel frame construction
- Hand-operated hydraulic pump
- Operating manual
- CE marking
Configurations within the HD Series
Within the standardised HD Series, the HYDRONIXS HD30 hand-operated can be delivered with additional options that relate to the variant without changing the structural basis of the model.
Possible options include:
- V-block
- Work table (press plate)
These configurations do not extend technical boundary conditions and do not change the scope of use.
Safety and compliance
The HYDRONIXS HD30 hand-operated is manufactured under a TÜV-certified quality management system and supplied in accordance with all applicable CE directives. Safety functions and operating controls are configured in line with the fixed HD design and the press-force capacity of the model.
Alternative variant
This model is also available as an electrically driven variant:
Request a quotation — HYDRONIXS HD30 hand-operated
For availability, variants and delivery time, a technical quotation for the HYDRONIXS HD30 hand-operated can be requested.
