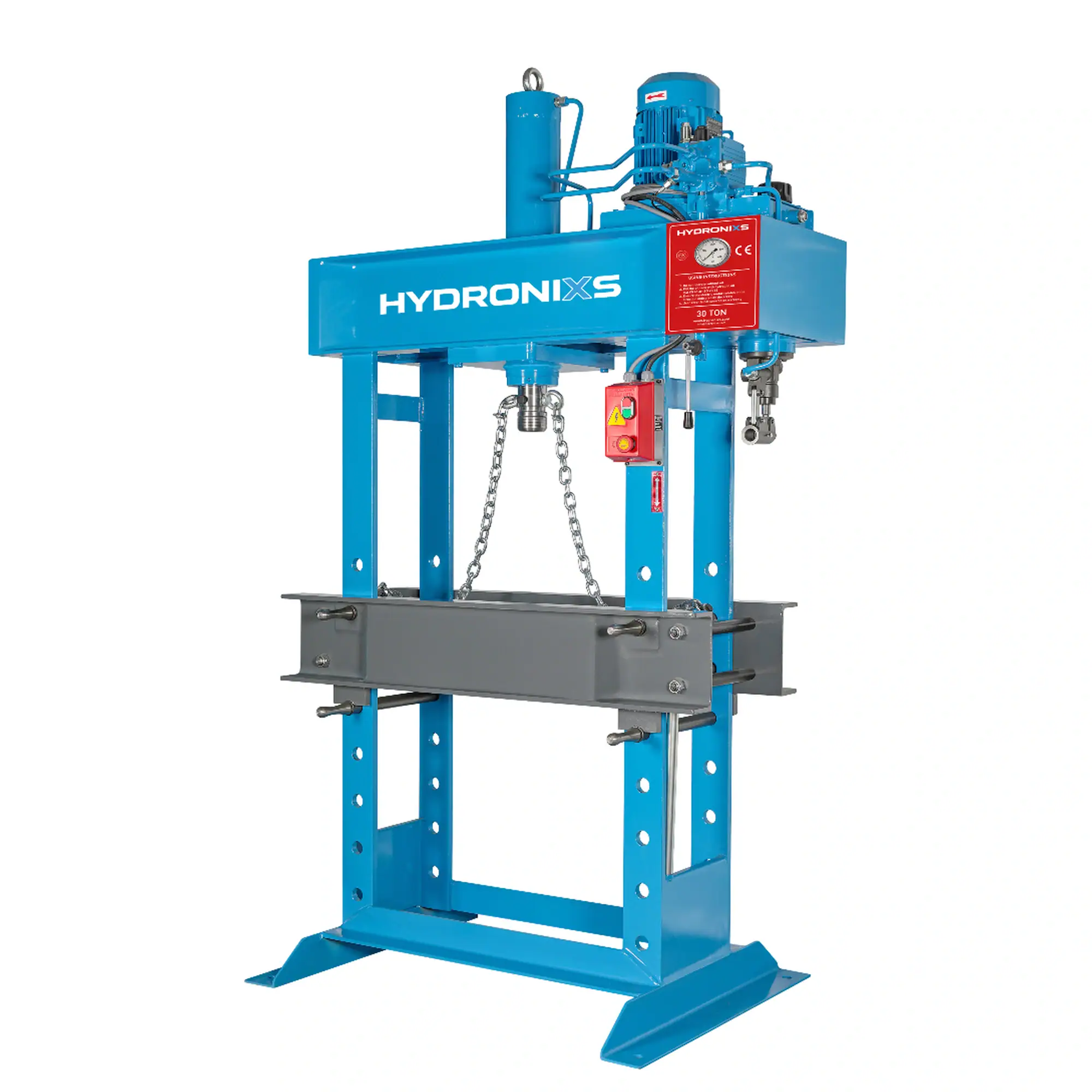

The HYDRONIXS HD30 is a hydraulic workshop press with a nominal press force of 30 tonnes. The model is part of the fixed HD Series of HYDRONIXS and is assigned to the press class of light-duty hydraulic workshop presses (20–60 tonnes).
The HD30 is delivered as a standard machine with a predefined construction, hydraulic system and fixed technical specifications.
Position within the HD Series
The HYDRONIXS HD30 belongs to the light-duty hydraulic workshop presses within the HD Series. Within this press class, the model represents a step above the HD20, with higher press force and a larger working area.
The HD30 is not a custom design and is not part of project-based engineering services.
Construction and variant
The HYDRONIXS HD30 is built on a welded steel frame construction. The hydraulic system is designed for the controlled build-up and controlled release of press force within the defined model specifications.
The variant is aligned with a fixed, reproducible machine structure within the HD Series.
Technical specifications
| Specification | Value |
|---|---|
| Press force | 30 tonnes |
| Working area | 720 × 300 mm |
| Stroke | 400 mm |
| Working height (daylight) | 900 mm |
| Motor power | 3 kW |
| Pump flow rate | 6 l/min |
| Downward speed | 7,5 mm/s |
| Return speed | 12,5 mm/s |
| Dimensions (L×W×H) | 850 × 1350 × 2200 mm |
| Weight | 600 kg |
Standard equipment
- Chrome-plated hydraulic cylinder
- Welded steel frame construction
- Pressure gauge
- Adjustable working pressure
- Operating manual
- CE marking
Configurations within the HD Series
Within the standardised HD Series, the HYDRONIXS HD30 can be delivered in different variants relating to operation and equipment, without changing the structural basis of the model.
Mogelijke uitvoeringen en opties zijn onder andere:
- Operating concept
- Pressure regulator
- V-block
- Work table (press plate)
- Automatic operation
- Movable hydraulic cylinder
These configurations do not extend technical boundary conditions and do not change the scope of use.
Safety and compliance
The HYDRONIXS HD30 is manufactured under a TÜV-certified quality management system and supplied in accordance with all applicable CE directives. Safety functions and operating controls are configured in line with the fixed HD design and the press-force capacity of the model.
Alternative variant
This model is also available as a hand-operated variant:
→ HYDRONIXS HD30 hand-operated
Request a quotation — HYDRONIXS HD30
For availability, variants and delivery time, a technical quotation for the HYDRONIXS HD30 can be requested.
